Jiangxi Mingxin Retired PV Panel Recycling Equipment | Full Line Process Showcase
Fully Automatic Physical Recycling Production Line | High-Purity Separation · Large-Scale Operation

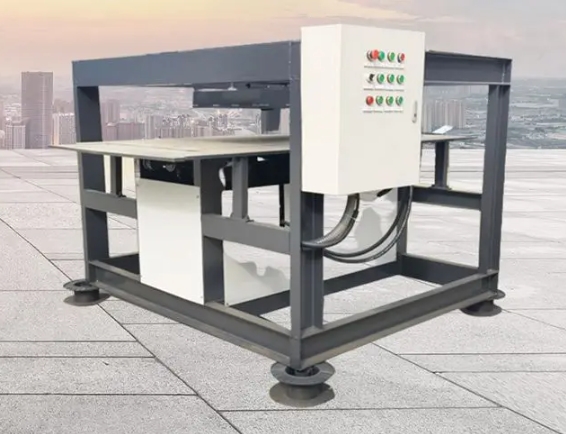

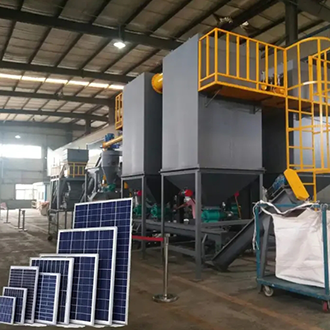

This equipment system is specifically designed for retired crystalline silicon photovoltaic modules, forming an integrated process loop of "fully automatic mechanical peeling + refined sorting." The complete line consists of: Automatic Aluminum Frame Remover → Glass Remover (MX-GFCB-500) → Multi-stage Crushing System → Fine Sorting System. The entire process is fully automated with integrated closed dust collection.
Key Equipment Parameters:
Glass Remover: Installed power 40kW, processing capacity 50–60 sheets/hour, equipment weight 3000kg, dimensions 6000×2500×2000mm
Copper & Aluminum Separation Purity: 99%
Key Recovery Rate Indicators (Based on actual equipment testing and comparable production line operational data):
| Parameter | Value |
|---|---|
| Glass removal rate | ≥98% |
| Aluminum frame integrity rate | ≥95% |
| Silicon wafer integrity rate | ≥96% |
| Metal separation purity | 99% |
| Overall material recovery rate | ≥92.5% |
Green Manufacturing: Fully enclosed negative-pressure operation, zero wastewater, low dust emissions, waste heat recovery to reduce unit energy consumption. The equipment's technical route complies with the national standard GB/T 43752-2024 "Physical method for recycling crystalline silicon photovoltaic modules."
