Specification |
||
|
Model |

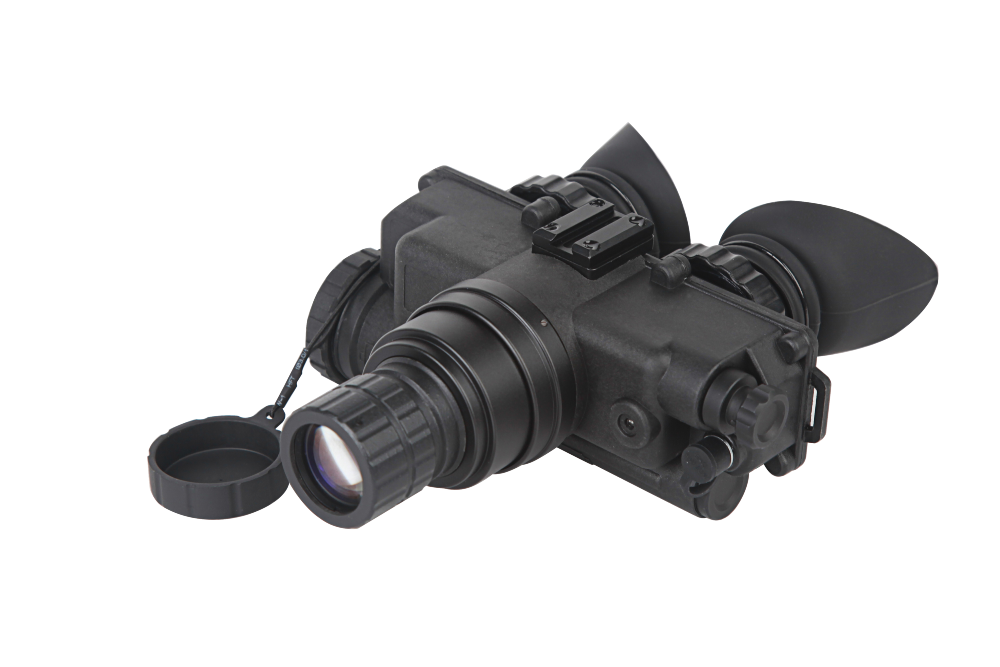

PVS-7 |
|
|
Magnification |
1X |
|
|
Field of View |
40° |
|
|
Lens system |
26.8mm: F/1.2 |
|
|
Focus range |
0.25m to infinity |
|
|
Eye relief distance |
15mm |
|
|
Diopter setting |
+5, -4 |
|
|
Overall dimensions |
191*152*81 mm |
|
|
Weight |
530g |
|
|
Power supply |
2 * AA |
|
|
Estimated battery life(without IR) |
40h |
|
|
Image Intensifier Tube |
||
|
Classification |
Gen2+ |
Gen3 (Optional) |
|
Photocathode type |
18mm S-25 |
18mm GaAs |
|
Photocathode sensitivities, typical, uA/lm |
600-900 |
1300-1800 |
|
Resolution, typical, lp/mm |
51-57 |
64 |
|
Luminous gain, typical, fl/fed |
19000-30000 |
45000-55000 |
|
Signal-to-noise ratio, typical |
18～23 |
23-30 |
|
FOM, typical |
1400-1600 |
1800-2500 |
|
Tube reliability standard, hour |
10000 |
12000 |
|
Keep time, typical, year |
10 |
15 |
|
Warranty, year |
1 |
|
|
Effective Distance (Human) |
||
|
Classification |
Gen2+ |
Gen3 (Optional) |
|
Detection range, approx, m |
|
|
|
-Quarter moon |
up to 220 |
up to 275 |
|
-Cloud cover |
up to 140 |
up to 240 |
|
Recognition range, approx, m |
|
|
|
-Quarter moon |
up to 175 |
up to 245 |
|
-Cloud cover |
up to 100 |
up to 165 |
|
Mark: Environment condition 10-3 LUX |
||
|
Environment Data |
||
|
Operating temperature, °C |
-40 to +50 |
|
|
Storage temperature, °C |
-50 to +70 |
|
|
Immersion, hour |
1 meter for 0.5h (optional) |
|
|
Humidity, % |
98% |
|
